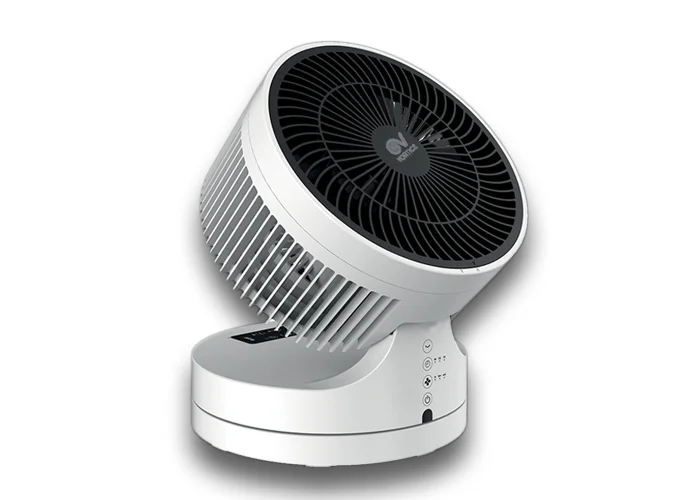

VORTICE - VENTILATEUR OSCILLANT DE TABLE, COMPLET DE TÉLÉCOMMANDE ET CARACTERISÉ PAR LE GROUPE MOTO-VENTILATEUR AVEC LA CHARNIÈRE SUR LA BASE DE SUPPORT POUR ABORDER LE FLUX D'AIR DANS LA DIRECTION DÉSIRÉE ET MINIMISER L'EMPLOI D'ESPACE LORSQU'IL N'EST PAS UTILISÉ
- SHOCKPROOF PLASTIC CASING (ABS).
- FRONT GRILLE IN PP RESISTANT TO AGGRESSIVE AGENTS.
- TOUCH CONTROLS IN THE FRONT PORTION OF THE PRODUCT.
- AXIAL IMPELLER DIRECTLY COUPLED TO A 3-SPEED ELECTRIC MOTOR, DESIGNED TO ENSURE SAFE AND RELIABLE OPERATION.
- IR REMOTE CONTROL, ON THE BOTTOM PART, FOR:
- POWER ON/OFF
- SPEED SETTING
- ACTIVATION OF THE AUTOMATIC ROTATION ON THE HORIZONTAL PLANE (60°) OF THE FAN UNIT
- THE SETTING OF THE TIMER FOR THE PROGRAMMED SHUTDOWN, AT 60' INTERVALS, UP TO A MAXIMUM OF 7 H.
- POSSIBILITY OF MANUALLY ORIENTING THE FAN MOTOR UNIT ON THE VERTICAL PLANE.
- POWER SUPPLY CABLE WITH A USEFUL LENGTH OF ABOUT 170 CM, INCLUDING SHUKO PLUG.
NORDIK VENT 60445
FREQUENCY(HZ): 50-60
PROTECTION DEGREE: IPX0
INSULATION: 2ND CLASS
WEIGHT (KG): 2.37
MAX. POWER CONSUMPTION (W): 42.2
RATED POWER (W): 45
ABSORPTION: 45W
RANGE m3/h: 82
WEIGHT (KG): 2.37
VOLTAGE (V): 220-240
SEASONAL ELECTRICITY CONSUMPTION (KWH/A): 13.76
MAX FLOW RATE (M³/H): 828
MAX FLOW RATE (M³/MIN): 13.81
STAND-BY POWER (W): 0.23
SOUND POWER LW [DB(A)]: 59.48
OPERATING VALUES (M³/MIN)/W: 0.33
AIR SPEED AT MAX VEL. (M/S): 5.92
SIZE A (MM): Ø 250SIZE B (MM): Ø 250SIZE C (MM): 350SIZE D (MM): 131SIZE E (MM): 198
