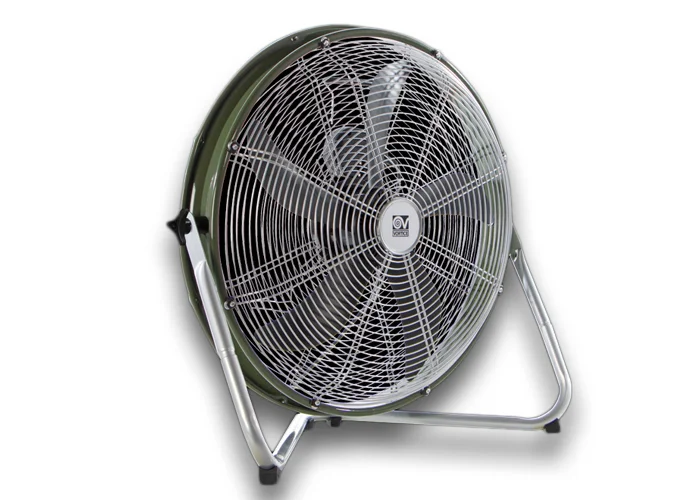

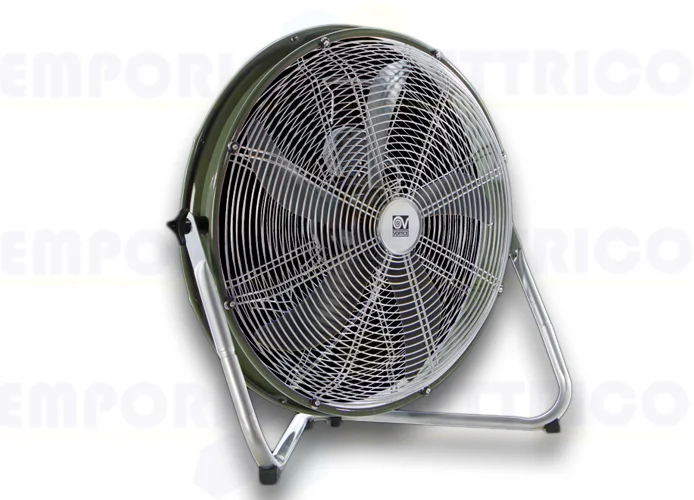

VORTICE - VENTILATEUR OSCILLANT AU SOL, ADAPTÉ AU REFRAîCHISSEMENT DES LOCAUX INDUSTRIELS ET COMMERCIAUX
- STEEL WHEEL RIM SHEET PAINTED IN GREEN.
- FRONT AND REAR GRILLES MADE OF A STEEL WIRE PAINTED IN GREY.
- SUPPORT STRUCTURE IN TUBULAR STEEL PAINTED IN GREY, COMPLETE WITH RUBBER ANTI-VIBRATION SUPPORTS.
- NOMINAL DIAMETER: 500 MM.
- 3-SPEED ELECTRIC INDUCTION MOTOR WITH STARTING CAPACITOR, THERMALLY PROTECTED AND EQUIPPED WITH HIGH QUALITY SELF-LUBRICATING AND SELF-CENTERING BUSHINGS.
- ROTARY SWITCH/SWITCH PLACED IN CORRESPONDENCE OF THE REAR GRILLE, WHICH ALLOWS TO SWITCH ON, OFF AND SELECT THE OPERATING SPEED OF THE UNIT.
- PAIR OF BLACK THERMOPLASTIC RESIN SCREW KNOBS FOR TIGHTENING AND ORIENTATION AT 360° TO THE HORIZONTAL PLANE OF THE FAN BODY.
- POWER SUPPLY CABLE WITH A USEFUL LENGTH OF ABOUT 190 CM, INCLUDING SHUKO PLUG.
- HIGH PERFORMANCE.
- COMPLIANT WITH THE REQUIREMENTS OF THE 206/2012 EUROPEAN REGULATION
NORDIK STORM 50/20” 60601
MAX ABSORBED CURRENT AT MAX VEL. (A): 0,48
MAX. CURRENT CONSUMPTION AT MIN VEL. (A): 0,38
FREQUENCY (HZ): 50
INSULATION: I° CLASS
WEIGHT (KG): 6.5
MAX ABSORBED POWER AT MAX VEL. (W): 110
MAX. ABSORBED POWER AT MIN VEL. (W): 85
VOLTAGE (V): 220-240
MAX FLOW RATE (M³/H): 8100
MAX FLOW RATE (M³/MIN): 135
SOUND POWER LW [DB(A)] - MAX VEL: 67.5
SOUND POWER LW [DB(A)] - MIN VEL: 62.6
SOUND PRESSURE LEVEL LP IN FREE FIELD [DB(A)] 3 M MAX. VEL.: 49.9
SOUND PRESSURE LEVEL LP IN FREE FIELD [DB(A)] 3 M MIN. SPEED: 45.1
RPM: 1210
OPERATING VALUES (M³/MIN)/W: 1,227
AIR SPEED AT MAX VEL. (M/S): 3.43
SIZE A (MM): 650SIZE B (MM): 610SIZE C (MM): 280
