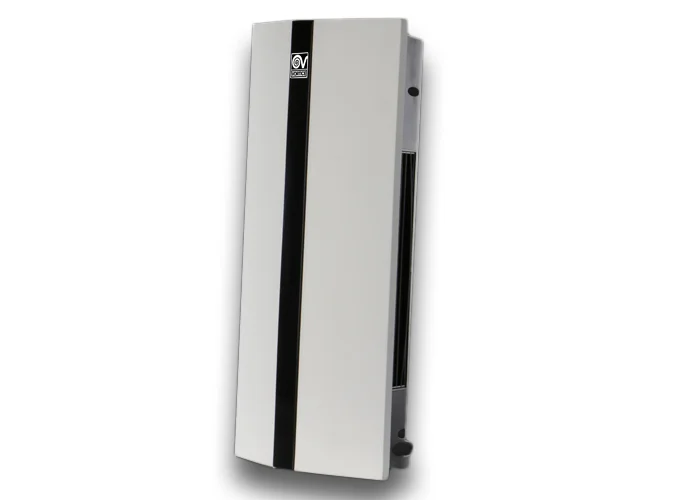

VORTICE - THERMOVENTILATEUR PORTABLE CALDOFAST
- FRONT CASING IN SELF-EXTINGUISHING ABS THERMOPLASTIC RESIN V2 AND PAINTED;
- REAR CASING IN SELF-EXTINGUISHING PRINTED POLYPROPYLENE V0 THAT INTEGRATES THE AIR INTAKE GRILLE
- AIR SUPPLY GRILLE MADE OF NYLON FILLED WITH SELF-EXTINGUISHING GLASS V0.
- ELECTRIC INDUCTION MOTOR WITH SHIELDED POLES, WITH SHAFT MOUNTED ON SELF-LUBRICATING BUSHINGS SUPPORTS, COMBINED WITH A TANGENTIAL IMPELLER MOULDED IN ALUMINIUM.
- RESISTANCE WITH TWO PRE-SELECTABLE POWER LEVELS (1,000 / 2,000 W), EQUIPPED WITH MANUAL RESET THERMAL LIMITER.
- 3-POSITION ROTARY SWITCH: OFF/1000/2000 W
- MANUALLY ADJUSTABLE ROOM THERMOSTAT WITH ANTIFREEZE FUNCTION THAT GUARANTEES THE AUTOMATIC SWITCHING ON OF THE FAN HEATER WHEN THE DETECTED ROOM TEMPERATURE DROPS BELOW 5°C.
- PROGRAMMABLE DIGITAL TIMER WITH DIFFERENT DAILY AND WEEKLY MODES.
- INDICATOR LIGHT FOR SIGNALLING THE APPLIANCE IS OPERATING.
- POWER SUPPLY CABLE WITH SCHUKO PLUG.
- POWER SUPPLY CABLE REEL.
- VERTICAL POSITIONING ON THE FLOOR OR ON A TABLE THANKS TO THE SUPPORT FOOT ON THE BACK.
- SAFETY CERTIFIED IMQ.
THERMO-VENTILATEUR CALDOFAST TIMER 70298
MAX. CURRENT CONSUMPTION (A): 8.7
FREQUENCY (HZ): 50
PROTECTION DEGREE: IPX1
INSULATION: 2ND CLASS
WEIGHT (KG): 1.8
MAX. POWER CONSUMPTION (W): 2000
MAX ABSORBED POWER (W): 2000
VOLTAGE (V): 230
PILOT FLAME STORAGE APPLIANCES
LUMINAIRES WITH STAND-BY MODE
AUXILIARY CONSUMPTION OF ELECTRICAL ENERGY AT MINIMUM HEAT OUTPUT - ELMIN (KW)0.02
AUXILIARY CONSUMPTION OF ELECTRICAL ENERGY AT NOMINAL HEAT OUTPUT - ELMAX (KW)0.02
AUXILIARY POWER CONSUMPTION IN STAND-BY MODE - ELSB (KW)0.02
CONTROL WITH TIME LIMITATION
CONTROL WITH REMOTE CONTROL OPTION
CONTROL WITH BLACK GLOBE THERMOMETER
ROOM TEMPERATURE CONTROL WITH OPEN WINDOW DETECTION
ROOM TEMPERATURE CONTROL WITH PRESENCE DETECTION
ADAPTIVE STARTING CONTROL
HEAT OUTPUT WITH TWO OR MORE MANUAL PHASES WITHOUT AMBIENT TEMPERATURE CONTROL
SINGLE-PHASE HEAT OUTPUT WITHOUT AMBIENT TEMPERATURE CONTROL
THERMAL POWER WITH ROOM TEMPERATURE CONTROL BY MECHANICAL THERMOSTAT
THERMAL POWER WITH ELECTRONIC AMBIENT TEMPERATURE CONTROL
THERMAL POWER WITH ELECTRONIC ROOM TEMPERATURE CONTROL AND DAILY TIMER
THERMAL POWER WITH ELECTRONIC ROOM TEMPERATURE CONTROL AND WEEKLY TIMER
CONTINUOUS HEAT OUTPUT - PMAX,C (KW): 2
MINIMUM HEAT OUTPUT - PMIN (KW): 1
NOMINAL HEAT OUTPUT - PNOM (KW): 2
SIZE A (MM): 410
SIZE B (MM): 200
SIZE C (MM): 110
