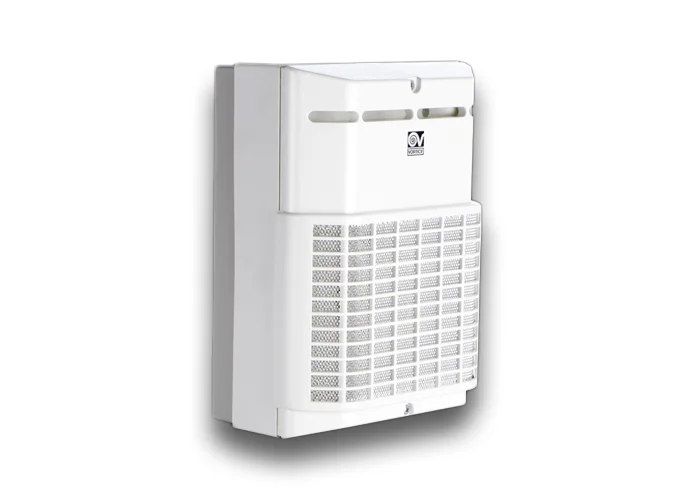

VORTICE - ASPIRATEURS CENTRIFUGES POUR INSTALLATION AU MUR, IDÉAUX POUR UNE VENTILATION CONTINUE (GRÂCE À LA GRILLE DE PROTECTION ET AU FILTRE À MAILLES D'ALUMINIUM) DES LIEUX DE TRAVAIL ET, EN GÉNÉRAL, DES LIEUX RÉSIDENTIELS ET COMMERCIAUX DE PETITES ET MOYENNES DIMENSIONS, DONT LE PLAN EXIGE LE CANAL DE DÉCHARGE
- POLYSTYRENE CONSTRUCTION (PS).
- NOMINAL DIAMETER 100 MM.
- CAPACITOR MOTOR, EQUIPPED WITH THERMAL PROTECTOR.
- MAXIMUM CAPACITY 90 M3/H.
- PROTECTION GRID AND MULTILAYER ALUMINIUM MESH FILTER IN THE FRONT OF THE PRODUCT, EASILY REMOVABLE AND WASHABLE.
- THROTTLE CLOSURE TO AVOID AIR RE-ENTRY WHEN THE APPLIANCE IS SWITCHED OFF.
- SPEED CONTROLLABLE BY VORTEX REGULATOR.
- SAFETY AND PERFORMANCE CERTIFIED IMQ AND IMQ PERFORMANCE.
VORT MICRO S 11900
MAX. CURRENT CONSUMPTION (A): 0.10
NOMINAL DUCT DIAMETER (MM): 100
FREQUENCY (HZ): 50
INSULATION: 2ND CLASS
Ø EXHAUST (MM): 97
WEIGHT (KG): 1.25
MAX. POWER CONSUMPTION (W): 20
VOLTAGE (V): 220-240
MAX FLOW RATE (L/S): 25
MAX FLOW RATE (M³/H): 90
MAX PRESSURE (MMH2O): 11.5
MAX PRESSURE (PA): 113
SOUND PRESSURE LP [DB (A)] 3M: 47
RPM: 1790
SIZE A (MM): 260SIZE B (MM): 185SIZE C (MM): 117SIZE D (MM): Ø 97SIZE E (MM): 25SIZE F (MM): 65
