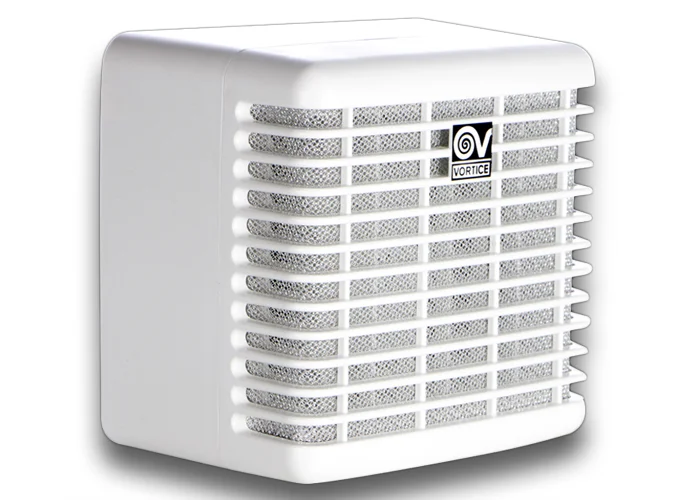

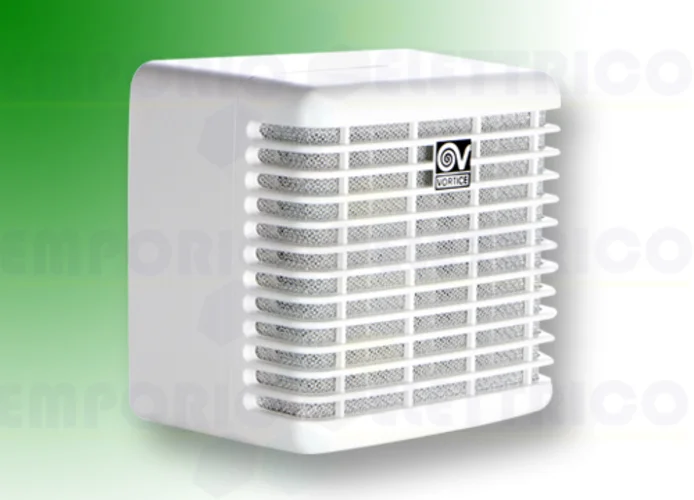

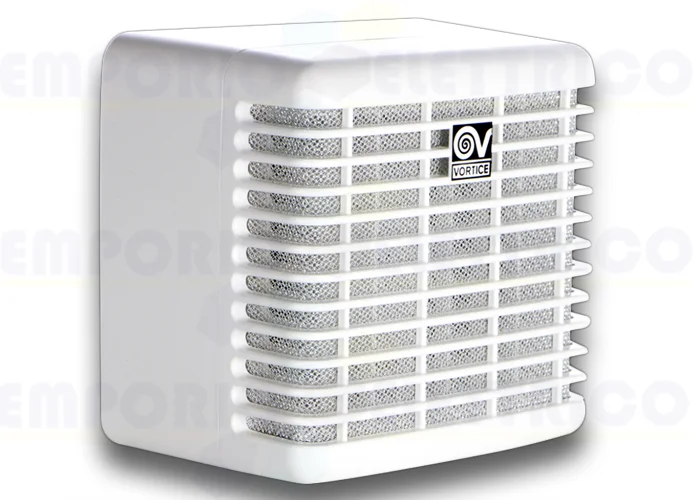

VORTICE - AÉRATEUR DE CONDUIT CENTRIFUGE, SÉRIE VORT PRESS LONG LIFE 30000h
- CONSTRUCTION IN PLASTIC RESIN AGING-RESISTANT DUE TO SUN EXPOSURE ("UV RESISTANT").
- NOMINAL DIAMETER 100 MM.
- HIGH EFFICIENCY ELECTRONIC COMMUTATION MOTOR (EC), COMBINED WITH A CENTRIFUGAL IMPELLER, WHICH GUARANTEES A WIDE RANGE OF ADJUSTMENTS AND A SIGNIFICANT REDUCTION IN CONSUMPTION, WITH THE SAME PERFORMANCE.
- DOUBLE MOTOR-FAN HOUSING, ANTI-VIBRATION MOUNTS AND NON-RETURN CLOSURE TO ENSURE EXTREMELY SILENT OPERATION.
- REMOVABLE AND WASHABLE METAL FILTER (EVEN IN DISHWASHER).
- CLOSURE WITH SILICONE MEMBRANE TO PREVENT AIR RE-ENTRY WHEN THE APPLIANCE IS SWITCHED OFF.
- VERTICAL DELIVERY MOUTHPIECE WITH MOUTHPIECE SUPPLIED, ADJUSTABLE IN HORIZONTAL POSITION WITH SPECIAL DIVERTER.
- COMPLETE DELIVERY MOUTH EQUIPPED WITH ANTI-RETURN VALVE.
- SATURATED FILTER SIGNALLING DEVICE.
- SPEED CONTROLLABLE BY VORTEX REGULATOR.
série VORT PRESS 220 LL 11977
MAX ABSORBED CURRENT AT MAX VEL. (A): 0,55
MAX. CURRENT CONSUMPTION AT MIN VEL. (A): 0,15
NOMINAL CONDUIT DIAMETER (MM): 100
FREQUENCY (HZ): 50
PROTECTION DEGREE: IPX4
INSULATION: 2ND CLASS
EXHAUST Ø (MM): 97
WEIGHT (KG): 2.3
MAX ABSORBED POWER AT MAX VEL. (W): 60
MAX. ABSORBED POWER AT MIN VEL. (W): 11
TEMP. ENVIRONMENT MAX. CONTINUOUS OPERATION (°C): 40
VOLTAGE (V): 220-240
MAX CAPACITY AT MAX VEL. (L/S): 72
MAX CAPACITY AT MAX VEL. (M³/H): 260
MAX FLOW RATE AT MIN VEL. (L/S): 35
MAX FLOW RATE AT MIN VEL. (M³/H): 125
MAX PRESSURE TO MAX VEL. (MMH2O): 35
MAX PRESSURE TO MAX VEL. (PA): 343
MAX PRESSURE AT MIN VEL. (MMH2O): 11
MAX PRESSURE AT MIN VEL. (PA): 108
SOUND PRESSURE LEVEL LP IN FREE FIELD [DB(A)] 3 M MAX. VEL.: 55
SOUND PRESSURE LEVEL LP IN FREE FIELD [DB(A)] 3 M MIN VEL.: 43
RPM MAX: 2380
RPM MIN: 1200
SIZE A (MM): 275
SIZE B (MM): 140
SIZE C (MM): 28
SIZE D (MM): Ø 97
SIZE E (MM): 73 complementary accessories:
- electronic speed controller vortice 12966
- built-in speed controller vortice 12971
