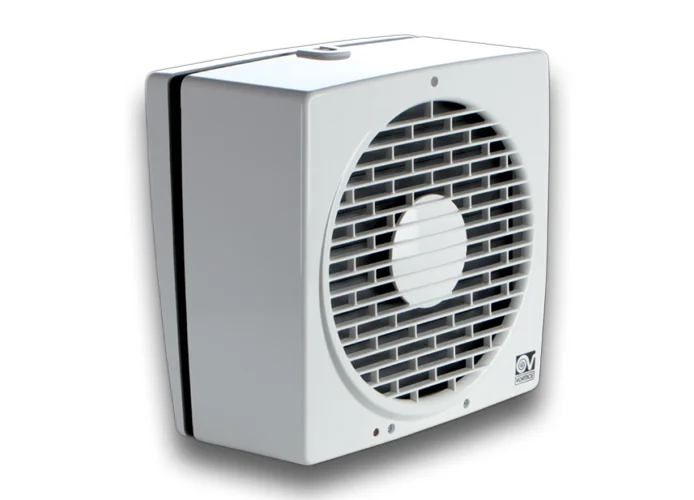

VORTICE - AÉRATEUR HÉLICOÏDAL, INSTALLATION MURALE/SUR VITRE, SÉRIE VARIO LONG LIFE 30000h
• MODEL DESIGNED FOR WINDOW/WALL MOUNTED INSTALLATION.
• REVERSIBILITY FUNCTION (INTAKE OR EXTRACTION).
• AUTOMATIC SHUTTER: PREVENTS THE ENTRY OF COLD AIR AND BAD SMELLS WHEN THE APPLIANCE IS SWITCHED OFF.
• MATERIAL: UV RESISTANT ABS PLASTIC (PREVENTS AGEING CAUSED BY EXPOSURE TO SUNLIGHT).
• NOMINAL DIAMETER 230 MM.
• MOTOR PROTECTED AGAINST THERMAL OVERLOAD, WITH SHAFT TURNING IN BALL BEARINGS, COUPLED TO SCREW TYPE THERMOPLASTIC IMPELLER WITH WING PROFILE BLADES.
• IMQ SAFETY AND IMQ PERFORMANCE CERTIFICATIONS.
VARIO 230/9" LL REVERSIBLE AUTOMATIC 12455
ABSORBED CURRENT MAX (A): 0,19
ABSORBED POWER MAX (W): 35
FREQUENCY (HZ): 50-60
INLET:AUTOMATICO
INSULATION CLASS: II°
IP: X4
MAX ABSORBED POWER AT 60HZ (W): 40
MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C): 50
MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION 60HZ (°C): 50
Ø DISCHARGE HOLE (MM): 230
VOLTAGE (V): 220-240
WEIGHT (KG): 3,45
DELIVERY MAX - EXTRACT (L/S): 194,4
DELIVERY MAX - EXTRACT (M3/H): 700
DELIVERY MAX - INTAKE (L/S): 102,8
DELIVERY MAX - INTAKE (M3/H): 370
DELIVERY MAX (M³/H): 700
RPM: 1200
RPM - EXHAUST: 1200
RPM - SUPPLY: 1300
SOUND PRESSURE LEVEL LP [DB (A)] 3M: 43,6
Ø GLASS HOLE: 257/262
Ø WALL HOLE: 257/262
SIZE A (MM): 294
SIZE B (MM): 297
SIZE C (MM): 31
SIZE D (MM): 130
SIZE E (MM): 2/38
