• MODEL DESIGNED FOR INSTALLATION RECESSED INTO WALL.
• REVERSIBILITY FUNCTION (INTAKE OR EXTRACTION).
• AUTOMATIC SHUTTER: PREVENTS THE ENTRY OF COLD AIR AND BAD SMELLS WHEN THE APPLIANCE IS SWITCHED OFF.
• MATERIAL: UV RESISTANT ABS PLASTIC (PREVENTS AGEING CAUSED BY EXPOSURE TO SUNLIGHT)
• NOMINAL DIAMETER 150 MM.
• MOTOR PROTECTED AGAINST THERMAL OVERLOAD, WITH SHAFT TURNING IN BALL BEARINGS, COUPLED TO SCREW TYPE THERMOPLASTIC IMPELLER WITH WING PROFILE BLADES.
• IMQ SAFETY AND IMQ PERFORMANCE CERTIFICATIONS.

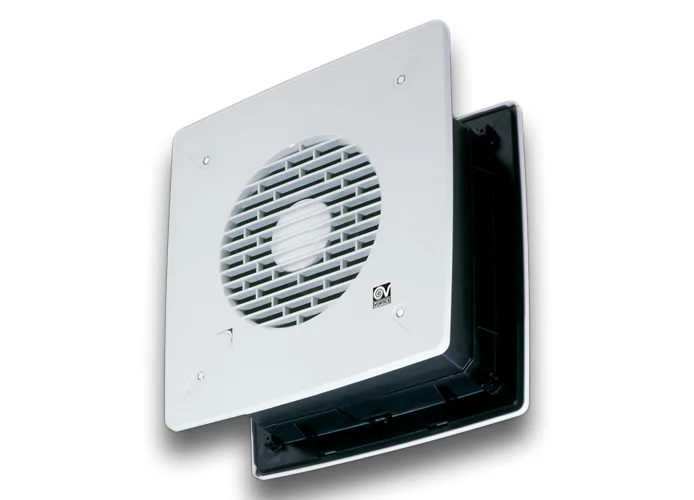

VARIO 150/6" REVERSIBLE AUTOMATIC LL 12616
ABSORBED CURRENT MAX (A): 0,17
ABSORBED POWER MAX (W): 35
FREQUENCY (HZ): 50-60
INLET: AUTOMATICO
INSULATION CLASS: II°
IP: X4
MAX ABSORBED POWER AT 60HZ (W): 35
MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C): 50
MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION 60HZ (°C): 50
Ø DISCHARGE HOLE (MM): 260 ÷ 265
VOLTAGE (V): 220-240
WEIGHT (KG): 2,52
DELIVERY MAX - EXTRACT (L/S): 97,2
DELIVERY MAX - EXTRACT (M3/H): 350
DELIVERY MAX - INTAKE (L/S): 55,6
DELIVERY MAX - INTAKE (M3/H): 200
DELIVERY MAX (M³/H): 350
RPM: 2080
RPM - EXHAUST: 2080
RPM - SUPPLY: 2460
SOUND PRESSURE LEVEL LP [DB (A)] 3M: 49,1
Ø WALL HOLE: 260/265
SIZE A (MM): 300
SIZE B (MM): 300
SIZE C (MM): 10,5
SIZE D (MM): 135
