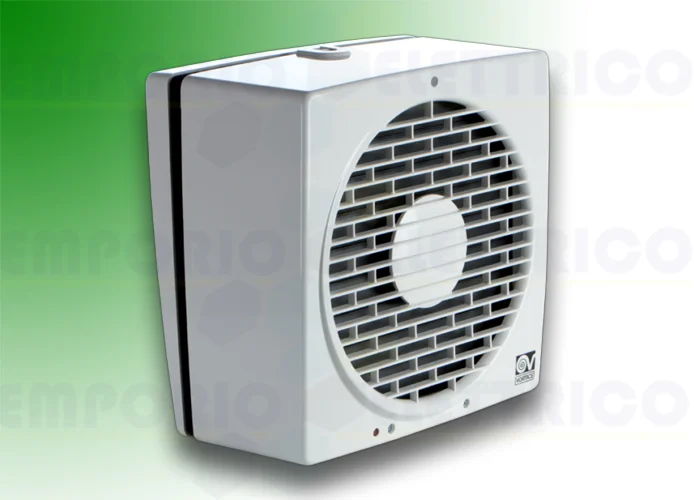

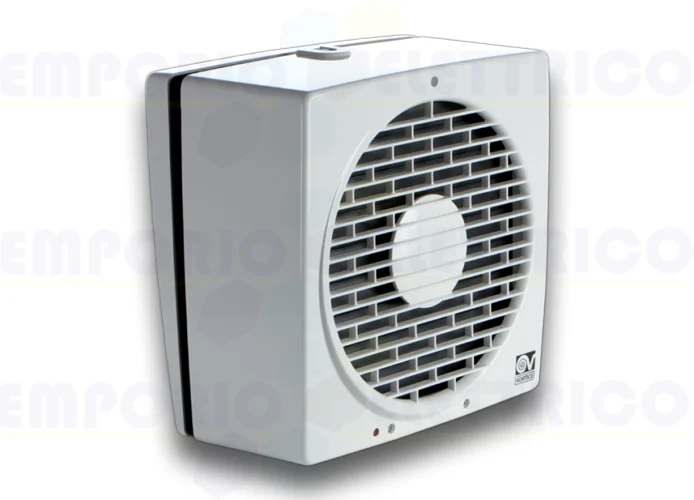

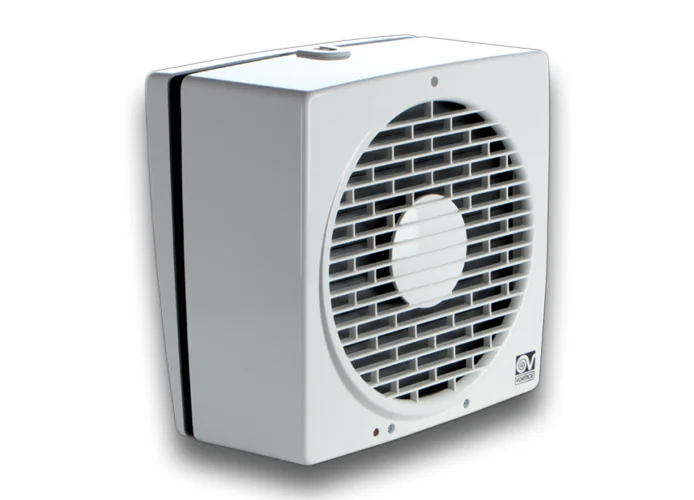

VORTICE - AÉRATEUR HÉLICOÏDAL, INSTALLATION MURALE/SUR VITRE, SÉRIE VARIO
• MODEL DESIGNED FOR WINDOW/WALL MOUNTED INSTALLATION.
• REVERSIBILITY FUNCTION (INTAKE OR EXTRACTION).
• AUTOMATIC SHUTTER: PREVENTS THE ENTRY OF COLD AIR AND BAD SMELLS WHEN THE APPLIANCE IS SWITCHED OFF.
• MATERIAL: UV RESISTANT ABS PLASTIC (PREVENTS AGEING CAUSED BY EXPOSURE TO SUNLIGHT).
• NOMINAL DIAMETER 300 MM.
• MOTOR PROTECTED AGAINST THERMAL OVERLOAD, WITH SHAFT TURNING IN SELF-LUBRICATING BUSHINGS, COUPLED TO SCREW TYPE THERMOPLASTIC IMPELLER WITH WING PROFILE BLADES.
• IMQ SAFETY AND IMQ PERFORMANCE CERTIFICATIONS.
VARIO 300/12" REVERSIBLE AUTOMATIC 12412
ABSORBED CURRENT MAX (A): 0,21
ABSORBED POWER MAX (W): 45
FREQUENCY (HZ): 50-60
INLET: AUTOMATICO
INSULATION CLASS: II°
IP: X4
MAX ABSORBED POWER AT 60HZ (W): 45
MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C): 50
MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION 60HZ (°C): 40
Ø DISCHARGE HOLE (MM): 300
VOLTAGE (V): 220-240
WEIGHT (KG): 6,13
DELIVERY MAX - EXTRACT (L/S): 292
DELIVERY MAX - EXTRACT (M3/H): 1050
DELIVERY MAX - INTAKE (L/S): 194,4
DELIVERY MAX - INTAKE (M3/H): 700
DELIVERY MAX (M³/H): 1050
RPM: 840
RPM - EXHAUST: 840
RPM - SUPPLY: 1085
SOUND PRESSURE LEVEL LP [DB (A)] 3M: 40,2
Ø GLASS HOLE: 324/329
Ø WALL HOLE: 324/329
SIZE A (MM): 390
SIZE B (MM): 393
SIZE C (MM): 31
SIZE D (MM): 147
SIZE E (MM): 2/38
