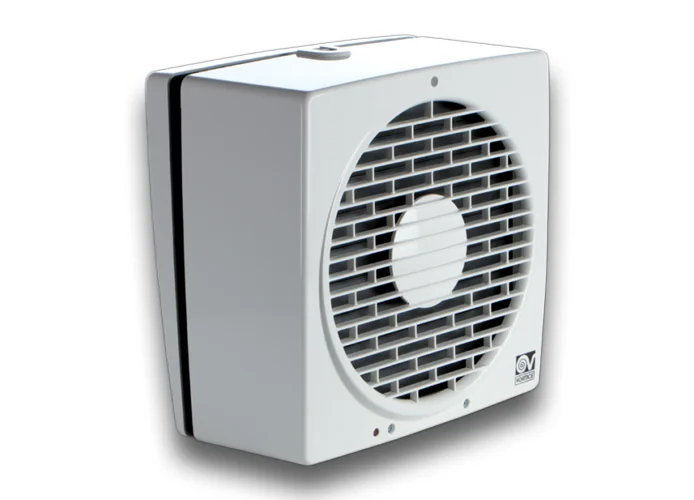

VORTICE - AÉRATEUR HÉLICOÏDAL, POUR INSTALLATION MURALE/SUR VITRE, SÉRIE VARIO
• MODEL DESIGNED FOR WINDOW/WALL MOUNTED INSTALLATION.
• VERSION WITH BUILT-IN SWITCH OPERATED BY PULLCORD MOUNTED TO EDGE OF GRILLE.
• MATERIAL: UV RESISTANT ABS PLASTIC (PREVENTS AGEING CAUSED BY EXPOSURE TO SUNLIGHT).
• NOMINAL DIAMETER 230 MM.
• MOTOR PROTECTED AGAINST THERMAL OVERLOAD, WITH SHAFT TURNING IN SELF-LUBRICATING BUSHINGS, COUPLED TO SCREW TYPE THERMOPLASTIC IMPELLER WITH WING PROFILE BLADES.
• IMQ SAFETY AND IMQ PERFORMANCE CERTIFICATIONS.
VARIO 230/9" P 12451
ABSORBED CURRENT MAX (A): 0,10
ABSORBED POWER MAX (W): 22
FREQUENCY (HZ): 50-60
INSULATION CLASS: II°
IP: X4
MAX ABSORBED POWER AT 60HZ (W): 22
MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C): 50
MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION 60HZ (°C): 50
MAX. ABSORBED POWER AT MAX SPEED (W): 22
Ø DISCHARGE HOLE (MM): 230
VOLTAGE (V): 220-240
WEIGHT (KG): 3,45
DELIVERY MAX (L/S): 133
DELIVERY MAX (M³/H): 480
RPM: 790
SOUND PRESSURE LEVEL LP [DB (A)] 3M: 35,6
Ø GLASS HOLE: 257/262
Ø WALL HOLE: 257/262
SIZE A (MM): 294
SIZE B (MM): 297
SIZE C (MM): 31
SIZE D (MM): 130
SIZE E (MM): 2/38
