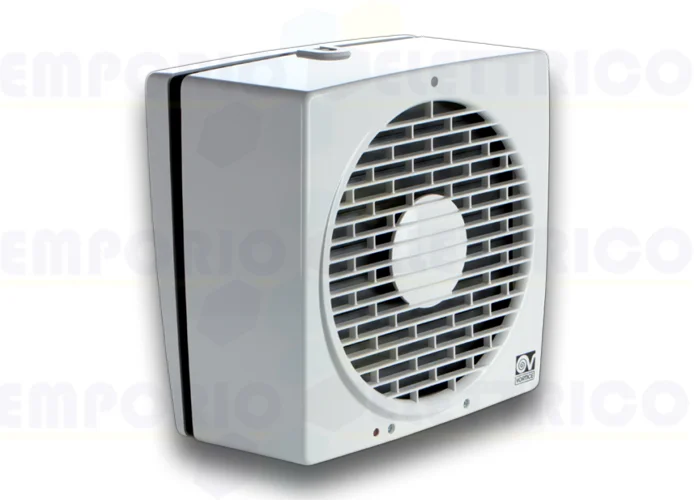

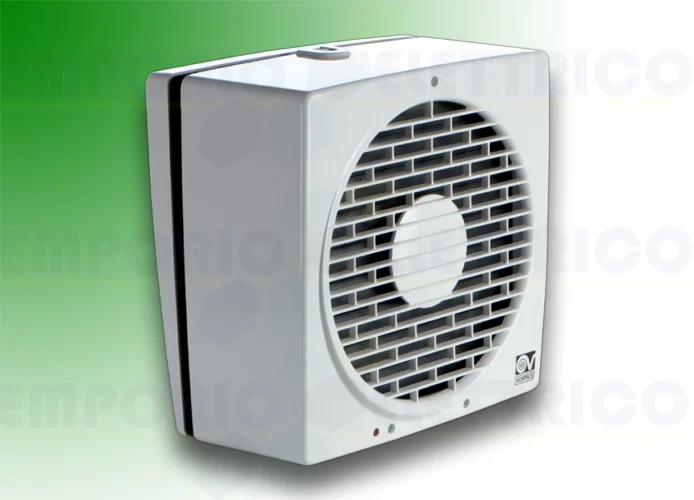

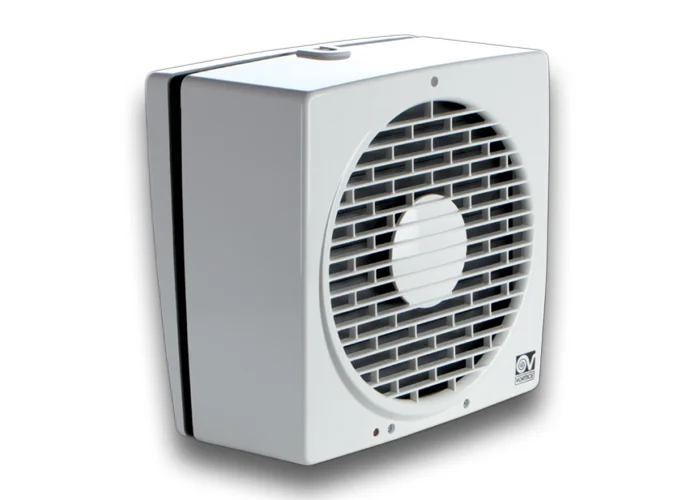

VORTICE - AÉRATEUR HÉLICOÏDAL, INSTALLATION MURALE/SUR VITRE, SÉRIE VARIO
• MODEL DESIGNED FOR WINDOW/WALL MOUNTED INSTALLATION.
• VERSION WITH BUILT-IN SWITCH OPERATED BY PULLCORD MOUNTED TO EDGE OF GRILLE.
• MATERIAL: UV RESISTANT ABS PLASTIC (PREVENTS AGEING CAUSED BY EXPOSURE TO SUNLIGHT).
• NOMINAL DIAMETER 150 MM.
• MOTOR PROTECTED AGAINST THERMAL OVERLOAD, WITH SHAFT TURNING IN SELF-LUBRICATING BUSHINGS, COUPLED TO SCREW TYPE THERMOPLASTIC IMPELLER WITH WING PROFILE BLADES.
• IMQ SAFETY AND IMQ PERFORMANCE CERTIFICATIONS.
VARIO 150/6" P 12611
ABSORBED CURRENT MAX (A): 0,10
ABSORBED POWER MAX (W): 18
FREQUENCY (HZ): 50-60
INSULATION CLASS: II°
IP: X4
MAX ABSORBED POWER AT 60HZ (W): 18
MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C): 50
MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION 60HZ (°C): 50
Ø DISCHARGE HOLE (MM): 150
VOLTAGE (V): 220-240
WEIGHT (KG): 2,07
DELIVERY MAX - EXTRACT (L/S): 65,3
DELIVERY MAX - EXTRACT (M3/H): 235
DELIVERY MAX (M³/H): 235
RPM: 1340
SOUND PRESSURE LEVEL LP [DB (A)] 3M: 37,5
Ø GLASS HOLE: 185/190
Ø WALL HOLE: 185/190
SIZE A (MM): 215
SIZE B (MM): 218
SIZE C (MM): 31
SIZE D (MM): 97,5
SIZE E (MM): 2/38
