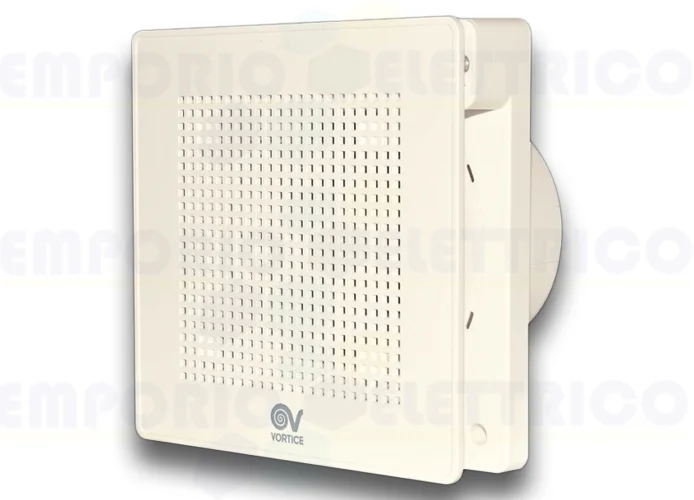

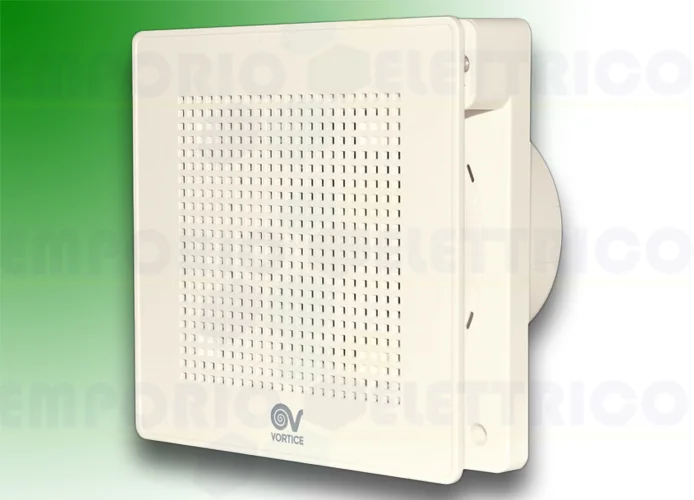

VORTICE - AÉRATEUR HÉLICOÏDAL MURAL, SÉRIE PUNTO EVO
AVEC TIMER ET HUMIDITY CONTROL SYSTEM PIR
• MATERIAL: UV RESISTANT WHITE PLASTIC (PREVENTS AGEING CAUSED BY EXPOSURE TO SUNLIGHT).
• NOMINAL DIAMETER 100 MM.
• MOTOR PROTECTED AGAINST THERMAL OVERLOAD, WITH SHAFT TURNING IN BALL BEARINGS; 2 OPERATING SPEEDS CONTROLLED ELECTRONICALLY FROM PCB.
• AIR FLOW BETWEEN 65 M3/H AND 95 M3/H.
• VERSION WITH SIMPLIFIED TIMER, OPERATING AT ONE SPEED MIN OR MAX, AND PIR PRESENCE DETECTOR: THE APPLIANCE IS EQUIPPED WITH A PCB INCORPORATING A PIR SENSOR THAT WILL ACTIVATE THE FAN AUTOMATICALLY ON DETECTING A PRESENCE IN THE ROOM; THE PCB ALSO PROVIDES A DELAYED SWITCH-OFF FUNCTION. THE LENGTH OF THE SWITCH-OFF DELAY, AS WELL AS THE SINGLE OPERATING SPEED, MIN OR MAX, CAN BE SET DURING INSTALLATION.
• EQUIPPED WITH NON-RETURN DAMPER PREVENTING UNWANTED BACKDRAUGHT WHEN THE FAN IS OFF.
• IMQ SAFETY CERTIFICATION.
PUNTO EVO Serie ME 100/4" LL T PIR TIMER 11263
ABSORBED POWER 1ST SPEED (W): 5
FREQUENCY (HZ): 50
INSULATION CLASS: II°
IP: 45
MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C): 50
MAX. ABSORBED CURRENT AT MAX. SPEED (A): 0,052
MAX. ABSORBED CURRENT AT MIN. SPEED (A): 0,039
MAX. ABSORBED POWER AT MAX SPEED (W): 9
NOMINAL DIAMETER (MM): 100
VOLTAGE (V): 220-240
WEIGHT (KG): 0,6
DELIVERY 1ST SPEED (L/S): 18,1
DELIVERY 1ST SPEED (M³/H): 65
MAX DELIVERY AT MAX SPEED (L/S): 26,4
MAX DELIVERY AT MAX SPEED (M³/H): 95
PRESSURE - 1ST SPEED (MMH20): 2,5
PRESSURE - 1ST SPEED (PA): 24,52
PRESSURE MAX - MAX SPEED (MMH20): 4,7
PRESSURE MAX - MAX SPEED (PA): 46,09
RPM MAX: 2240
RPM MIN: 1700
SOUND POWER LW [DB(A)] - MIN SPEED: 41,3
SOUND POWER LW [DB(A)] - MAX SPEED: 47,4
SOUND PRESSURE LEVEL LP IN FREE FIELD [DB(A)] 3 M MAX SPEED: 26,9
SOUND PRESSURE LEVEL LP IN FREE FIELD [DB(A)] 3 M MIN SPEED: 20,8
SIZE A (MM): 159
SIZE B (MM): 159
SIZE C (MM): 118
SIZE D (MM): Ø 98
SIZE E (MM): 61,5
SIZE F (MM): 40,5
SIZE G (MM): 132
SIZE H (MM): 132
SIZE L (MM): Ø 3,5
SIZE M (MM): 42
