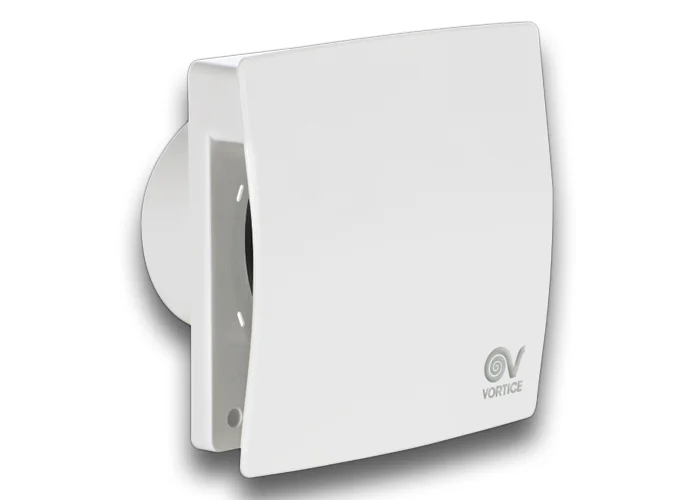

vortice aérateur mural punto evo flexo long life mex 120/5" ll 1s 11334

SKU: 11334

175,33 €TTC

VORTICE - AÉRATEUR AXIAL MURAL, PLAFOND ET FAUX PLAFOND, IDÉAL POUR ÉCHANGE D'AIR DANS LES LOCAUX RÉSIDENTIELS ET COMMERCIAUX, PETITES ET MOYENNES DIMENSIONS, MÊME EN PRÉSENCE DE TUYAUX D'ÉCHAPPEMENT DE MOYENNE LONGUEUR.

• HOUSINGS MADE OF SHOCKPROOF AND UV RESISTANT WHITE ABS.
• NOMINAL DIAMETER 120 MM.
• AC MOTOR EQUIPPED WITH LONG-LIFE BALL-BEARINGS, MIXED-FLOW IMPELLERS MADE OF PP RESISTANT TO AGGRESSIVE SUBSTANCES.
• MAXIMUM AIR FLOW 175 M3/H.
• TIMER ALLOWING DELAYED SWITCH-OFF FUNCTION; SWITCH-OFF DELAY CAN BE SET AT INSTALLATION IN A RANGE BETWEEN 3’ AND 20’.
• INTEGRATED BUTTERFLY BACK-DRAUGHT SHUTTER DESIGNED TO PREVENT UNWANTED AIR INFLOWS WHEN THE APPLIANCE IS SWITCHED-OFF.
• PROTECTION RATING IP45, SUITABLE FOR INSTALLATION IN ZONE 1 OF BATHROOMS, AS DEFINED BY INTERNATIONAL STANDARD IEC 60364-7.
• IMQ SAFETY CERTIFICATION.


PUNTO EVO FLEXO LONG LIFE 30000 H WITH TIMER MEX 120/5" LL 1S T       11334
FREQUENCY (HZ): 50
INSULATION CLASS: II°
IP: 45
MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C):  50
MAX. ABSORBED CURRENT AT MAX. SPEED (A): 0,095
MAX. ABSORBED POWER AT MAX SPEED (W): 13
NOMINAL DIAMETER (MM): 120
VOLTAGE (V): 220-240
WEIGHT (KG): 0,77
MAX DELIVERY AT MAX SPEED (L/S): 48,6
MAX DELIVERY AT MAX SPEED (M³/H): 175
PRESSURE MAX - MAX SPEED (MMH20): 5
PRESSURE MAX - MAX SPEED (PA): 49,04
RPM MAX: 2075
SOUND POWER LW [DB(A)] - MAX SPEED: 52,8
SOUND PRESSURE LEVEL LP IN FREE FIELD [DB(A)] 3 M MAX SPEED: 32,3

  • Marque: VORTICE
