• MATERIAL: WHITE ABS PLASTIC
• CAPACITOR START 2-SPEED INDUCTION MOTOR COUPLED TO A FORWARD BLADED CENTRIFUGAL IMPELLER. EQUIPPED WITH THERMAL OVERLOAD CUTOUT AND SELF-LUBRICATING BUSHINGS.
• NOMINAL DIAMETER 100 MM.
• EQUIPPED WITH ELECTRONIC TIMER DESIGNED TO SHUT OFF THE MOTOR AUTOMATICALLY AFTER A SET INTERVAL, SELECTABLE DURING INSTALLATION IN THE RANGE 3’-20’ (DEFAULT SETTING 3’).
• IMQ SAFETY AND IMQ PERFORMANCE CERTIFICATIONS.

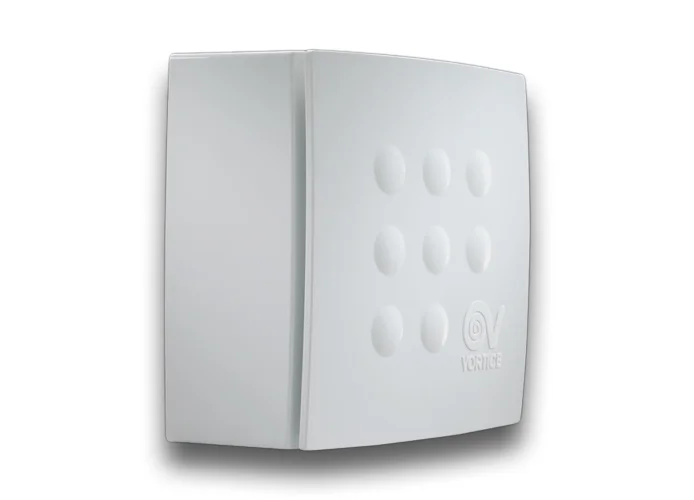

VORT QUADRO Serie MEDIO T 11946
ABSORBED POWER 1ST SPEED (W): 25
FREQUENCY (HZ): 50
INSULATION CLASS: II°
IP: X4
MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C): 50
MAX. ABSORBED CURRENT AT MAX. SPEED (A): 0,18
MAX. ABSORBED CURRENT AT MIN. SPEED (A): 0,14
MAX. ABSORBED POWER AT MAX SPEED (W): 29
NOMINAL DIAMETER (MM): 100
Ø DISCHARGE HOLE (MM): 97
VOLTAGE (V): 220-240
WEIGHT (KG): 2,5
DELIVERY 1ST SPEED (L/S): 19
DELIVERY 1ST SPEED (M³/H): 70
MAX DELIVERY AT MAX SPEED (L/S): 33
MAX DELIVERY AT MAX SPEED (M³/H): 120
PRESSURE - 1ST SPEED (MMH20): 22
PRESSURE - 1ST SPEED (PA): 216
PRESSURE MAX - MAX SPEED (MMH20): 34
PRESSURE MAX - MAX SPEED (PA): 329
RPM MAX: 1890
RPM MIN: 1150
SOUND PRESSURE IN FREE AIR CONDITIONS [DB(A)] 3M: 36,7
SOUND PRESSURE LEVEL LP [DB (A)] 3M - MAX SPEED: 43,4
SOUND PRESSURE LEVEL LP [DB (A)] 3M - MIN SPEED: 36,7
SIZE A (MM): 261
SIZE B (MM): 212
SIZE C (MM): 215
SIZE D (MM): 95
SIZE E (MM): 82
SIZE F (MM): 75
SIZE G (MM): 69
SIZE H (MM): 119
SIZE I (MM): 110
SIZE L (MM): 20
SIZE T (MM): 138
